← Book OverviewKorean

CORE-01 Practice Files

Physical AI with RoboCo · CORE-01 · Digital Package

CORE-01MOVE / CONTROLDigital Package

Digital Package · Book_C01_Robot v1.6.3 · RoboCo API 0.3.1

Everything you need
to run the book's exercises

Two robot files, the start file with its Educational Library, and the record sheets, all in one place. You'll use these files from Chapter 1 through Chapter 25. The book's Getting Started section explains where to put them and how to connect them.

  1. Robot files ZIP · 151 KBLoad Robot 1 and Robot 2 in RoboCo.
  2. Start file & library ZIP · 46 KBUnzip it directly inside RoboCo's Scripts folder. Comments are in English.
  3. Record sheets PDF · 118 KBPrint these for Parts 4 and 5 and the challenges.

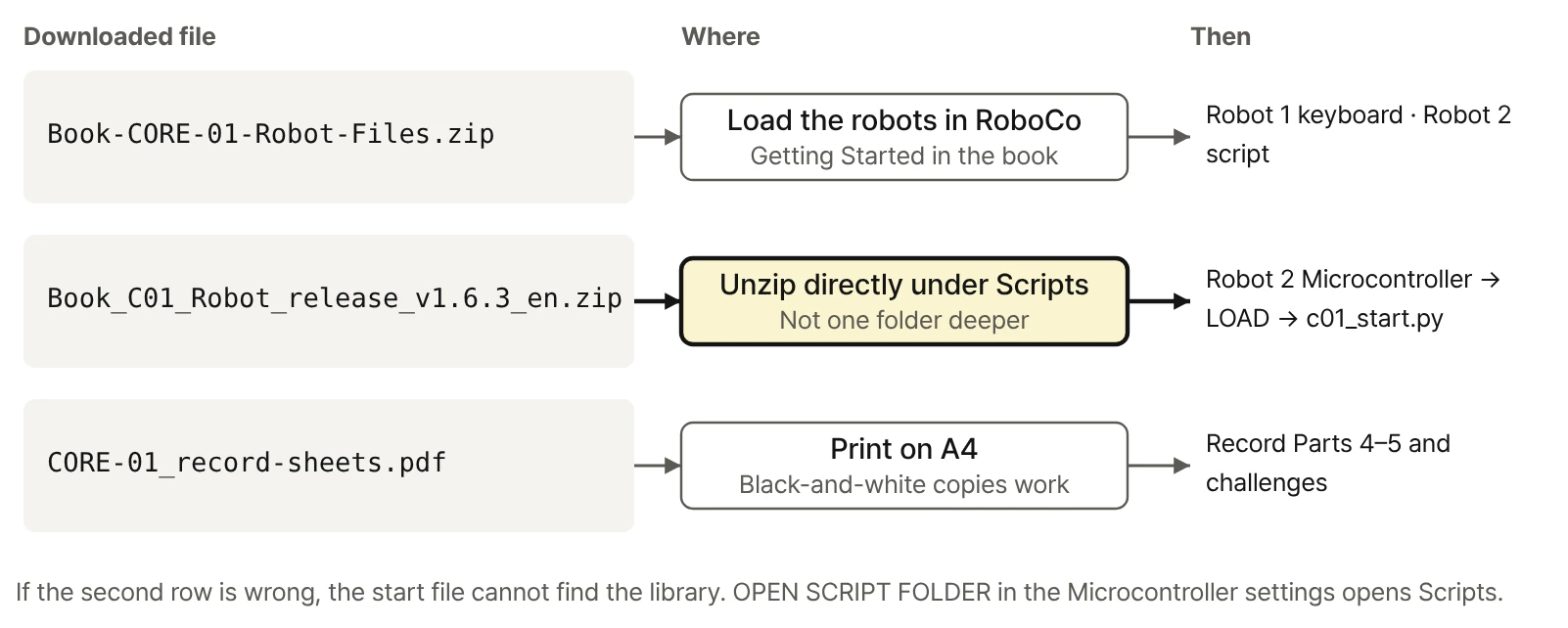

Where each download goes: the robot-file ZIP is loaded in RoboCo; the Book_C01_Robot ZIP is unzipped directly under Scripts (highlighted); the record-sheet PDF is printed on A4. Each row ends with the next step.
Flow map Where each download goes. The location in the second row matters most.Enlarge ↗ (Open full size in a new tab)
You need RoboCo from Steam. You don't need to install Python separately. Check RoboCo's Steam page for current OS support, system requirements, languages, and price.

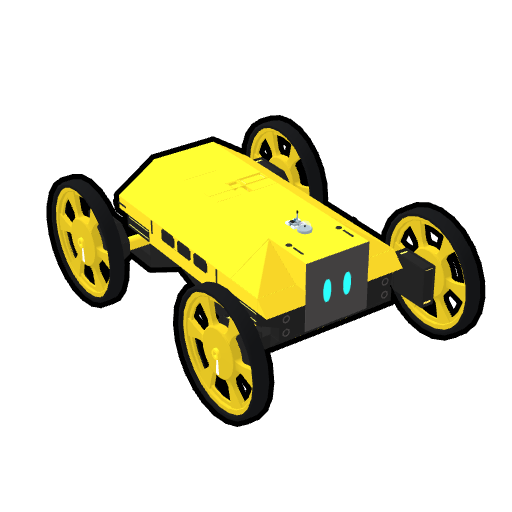

Two robot files

One four-wheel robot with independent drive and steering, set up two ways. Download both in one ZIP, or click a file name below to download it on its own.

Both robot files (ZIP) · 151 KB

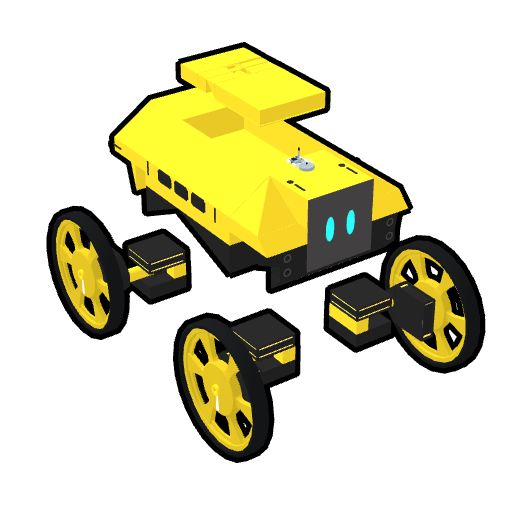

The book calls Robot 2 Book-CORE-01-SCRIPT. The file here is named Book-CORE-01-SCRIPT_PART, but it's the same robot. If the name changes, we'll note it here and in the errata.

Start file and Educational Library

Robot 2 runs a single start file, c01_start.py. The C01_Lib folder is the author's Educational Library that the start file calls; it is not part of the official RoboCo API. Appendix E of the book maps where the official API ends and the library begins.

English-comment edition

Book_C01_Robot_release_v1.6.3_en.zip · 46 KB

Release 1.6.3, the version that goes with the book, with comments, docstrings, and the README in English.

Unzipping it gives you the Book_C01_Robot folder. Put that folder directly inside your Scripts folder.

Scripts/ ← OPEN SCRIPT FOLDER in RoboCo's Microcontroller settings

Three install rules

  1. Put Book_C01_Robot directly under Scripts. If it ends up one folder deeper, the start file can't find the library.
  2. Don't rename the folders or files.
  3. When you install a new version, delete the old folder first. Copying over it can leave old files behind.

Experiment and mission record sheets 3 A4 pages

Sheets 1 and 2 are print-ready versions of the blank forms in Appendix I of the book; Sheet 3 is a web-only form for the challenge missions. Gray lines keep the cells readable in black-and-white copies.

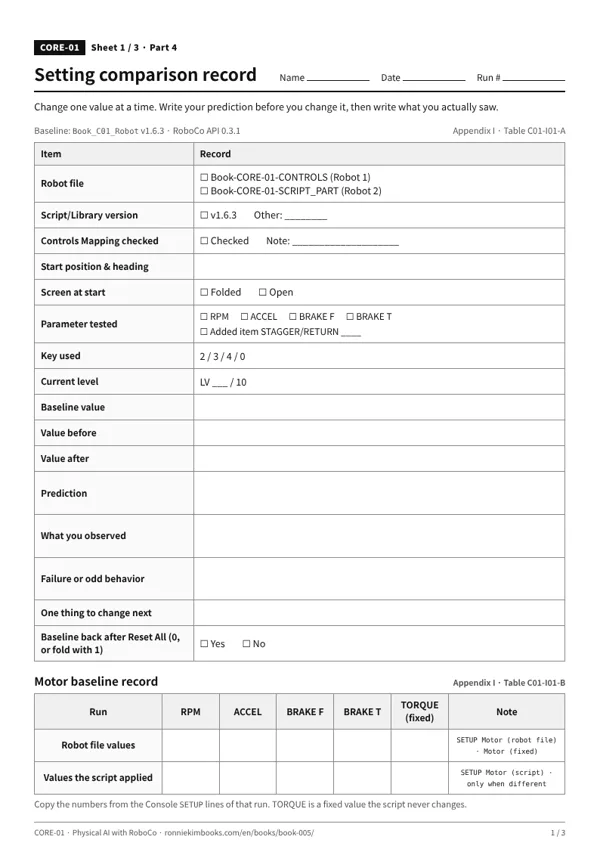

Sheet 1 preview: setting comparison and motor baseline tables
Sheet 1 · Part 4 setting comparison

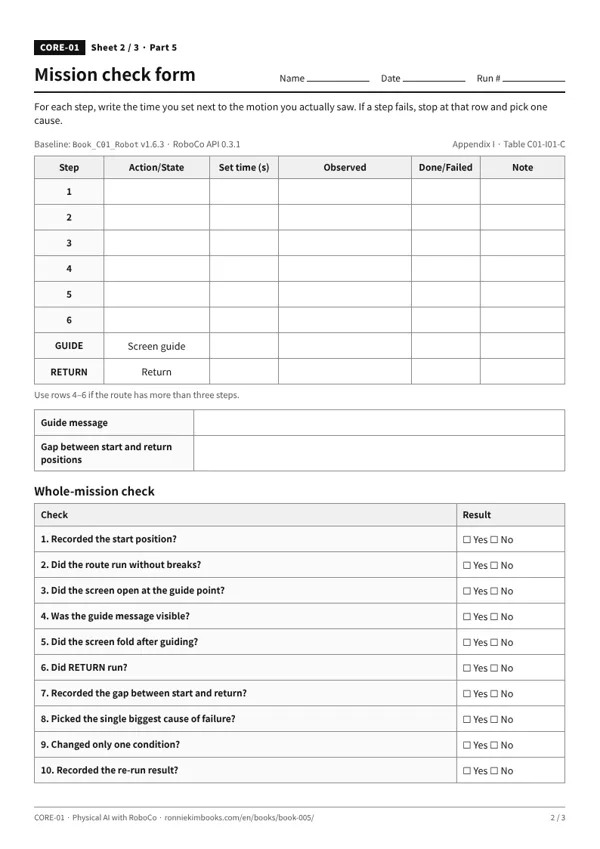

Sheet 2 preview: per-step mission table and ten-item mission check
Sheet 2 · Part 5 mission check

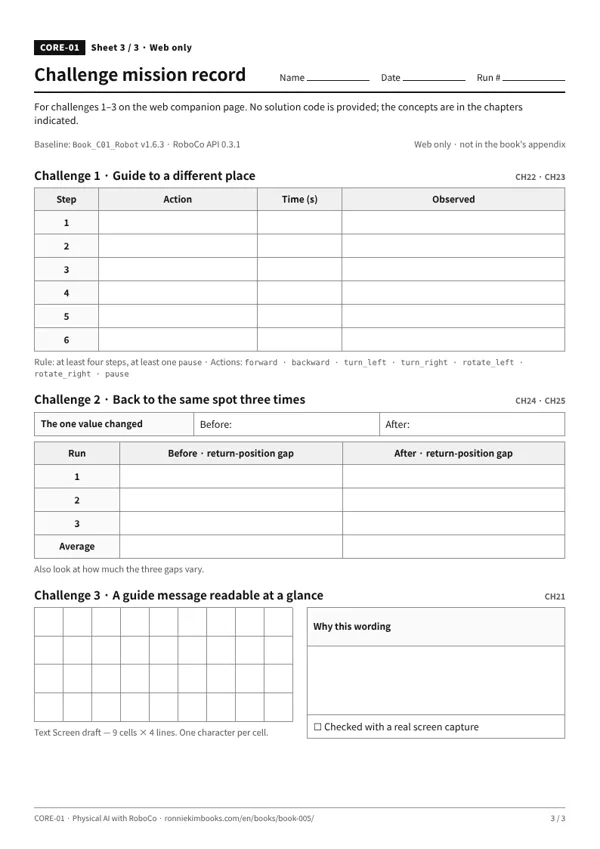

Sheet 3 preview: route plan, three-run return table, and a 9-by-4 message grid
Sheet 3 · web-only challenges

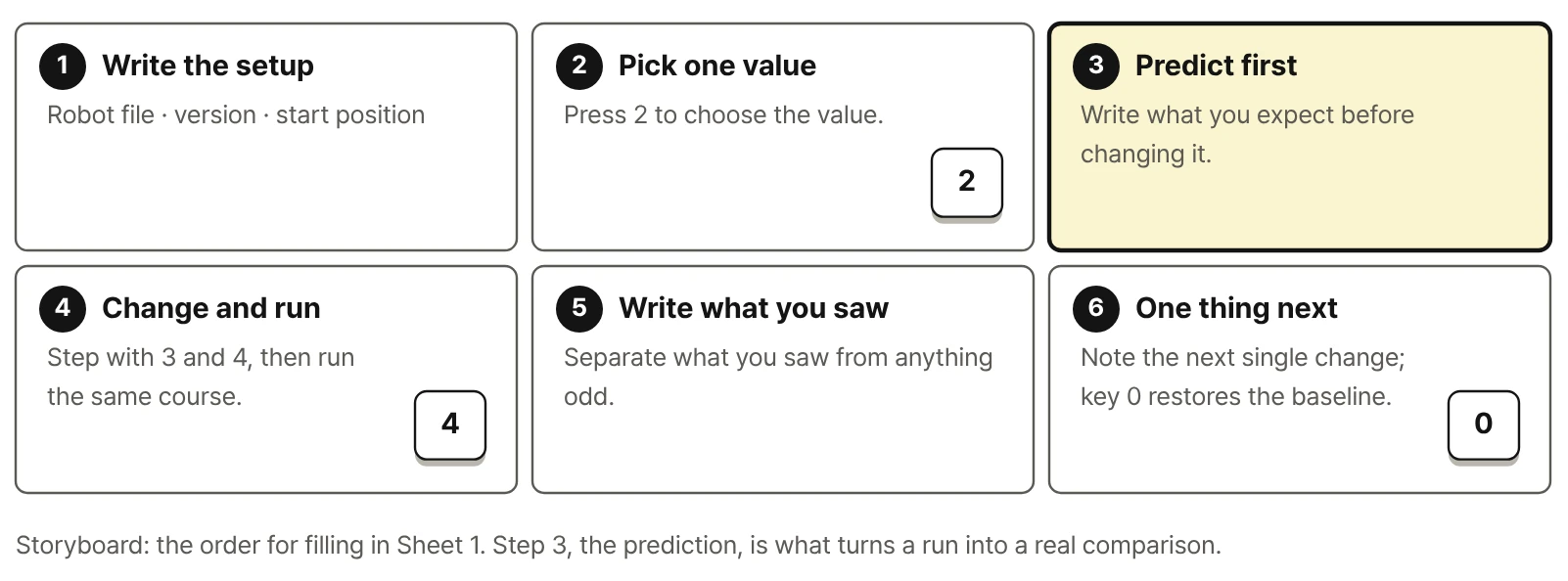

Six steps for Sheet 1: 1 write the setup, 2 pick one value (key 2), 3 predict first (highlighted), 4 change and run (key 4), 5 write what you saw, 6 one thing next (key 0).
Storyboard Filling in Sheet 1: write your prediction before you change anything.Enlarge ↗ (Open full size in a new tab)

Record sheets PDF · 118 KB Print-friendly page

In a class, Sheets 1 and 2 work as lab reports and Sheet 3 as an extension assignment. For sample grading criteria, see Book sets & courses.

Versions · file checksums

Robot filesBook-CORE-01-CONTROLS · Book-CORE-01-SCRIPT_PART
2026-09-30 · 151 KB
SHA-256 cc3978810bfd9d289208c6b84b155c59fa6ae4b9b9e1aa30c3e19f2fa98d1397
Start file & library (English comments)Book_C01_Robot release v1.6.3
2026-10-09 · 46 KB
SHA-256 24b30515276a661a21f0966f88971714bbdfc1042ee3105e47dad4695a679b70
Record sheetsCORE-01 record sheets (en)
2026-10-08 · 118 KB
SHA-256 d641c030b7de73207ef518ad063b5942f73f0fb382a4377d685466b6b6ca3966
RoboCo API0.3.1
Full listmanifest.json · SHA256SUMS.txt

If screens, logs, or key behavior differ from the book, check versions first. If a RoboCo update breaks compatibility, updated files and notes will appear in Versions & errata.

Terms of use

RoboCo is a game made by Filament Games. These files are not official RoboCo examples or materials; the author created them for this book's exercises. Use and redistribution are governed by the copyright notice in the book.
